Get ready to dive into a fascinating world of atomic-scale discoveries! We're about to uncover the secrets of a revolutionary material that could shape the future of technology. But here's the catch: it all hinges on an incredibly thin line, a mere 2 nanometers thick!
Scientists have been exploring the potential of elemental antimony, a simple yet powerful substance, for next-generation memory and nanophotonic devices. Hanyi Zhang and colleagues took an in-depth look at antimony's behavior as it approaches this ultra-thin limit. Their findings? As the thickness of antimony films decreases, its optical properties take an intriguing turn, impacting light absorption and the contrast between its structural states.
The team's research established a fundamental thickness limit of 2 nanometers for practical applications. But here's where it gets controversial: this ultra-thin film actually enhances stability, opening up exciting possibilities for robust and reversible optical switching in silicon-based devices.

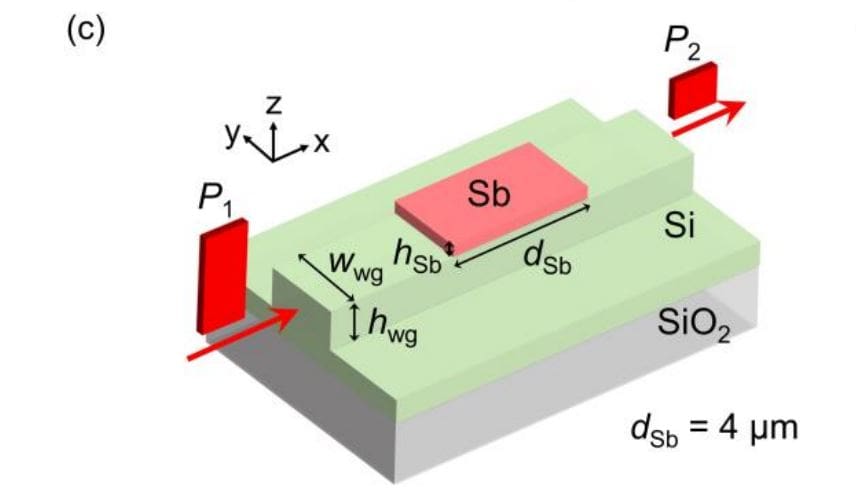

To understand this phenomenon, the scientists investigated antimony thin films using density functional theory calculations and experiments. They constructed models of crystalline and amorphous antimony, ranging from a single atomic layer to 5.1 nanometers in thickness. By analyzing the lattice parameters and energy gaps, they predicted a thickness limit of around 2 nanometers for functional waveguide devices.
And this is the part most people miss: the team's experiments confirmed this limit, revealing that below this threshold, performance degrades significantly. Yet, even at this minimal thickness, the antimony films still exhibit a substantial contrast in physical properties, making them suitable for phase-change applications.
The improved stability of the amorphous phase at 2 nanometers is a game-changer, enabling reliable and reversible optical switching. This unique balance between crystallization kinetics and property contrast makes antimony the only successfully realized monatomic phase-change material.
So, what does this mean for the future? This research paves the way for optimizing material thickness in non-volatile and reconfigurable optical applications, starting with a solid foundation at the atomic scale.
